118W 12V USB Socket Aluminum Outlet, 100W PD3.0 USB-C & 18W QC3.0 USB-A

Obeaming 118W 12V RV USB Outlet Aluminum, 12V USB C Socket 100W PD & 18W QC3.0 USB-A Fast Charging Laptops Waterproof for Campervan Golf Boat Caravan Truck Car

Powerful & Versatile 100W USB-C - Innovative PD 3.0 100W USB-C can charge almost any USB-C device with ease, from laptops  to tablets, or other type-C devices, offering unmatched versatility. Rapidly charge up to two devices simultaneously, with a total output capacity of up to 118W. Recommended to use E-Marker certified 100W+ cables

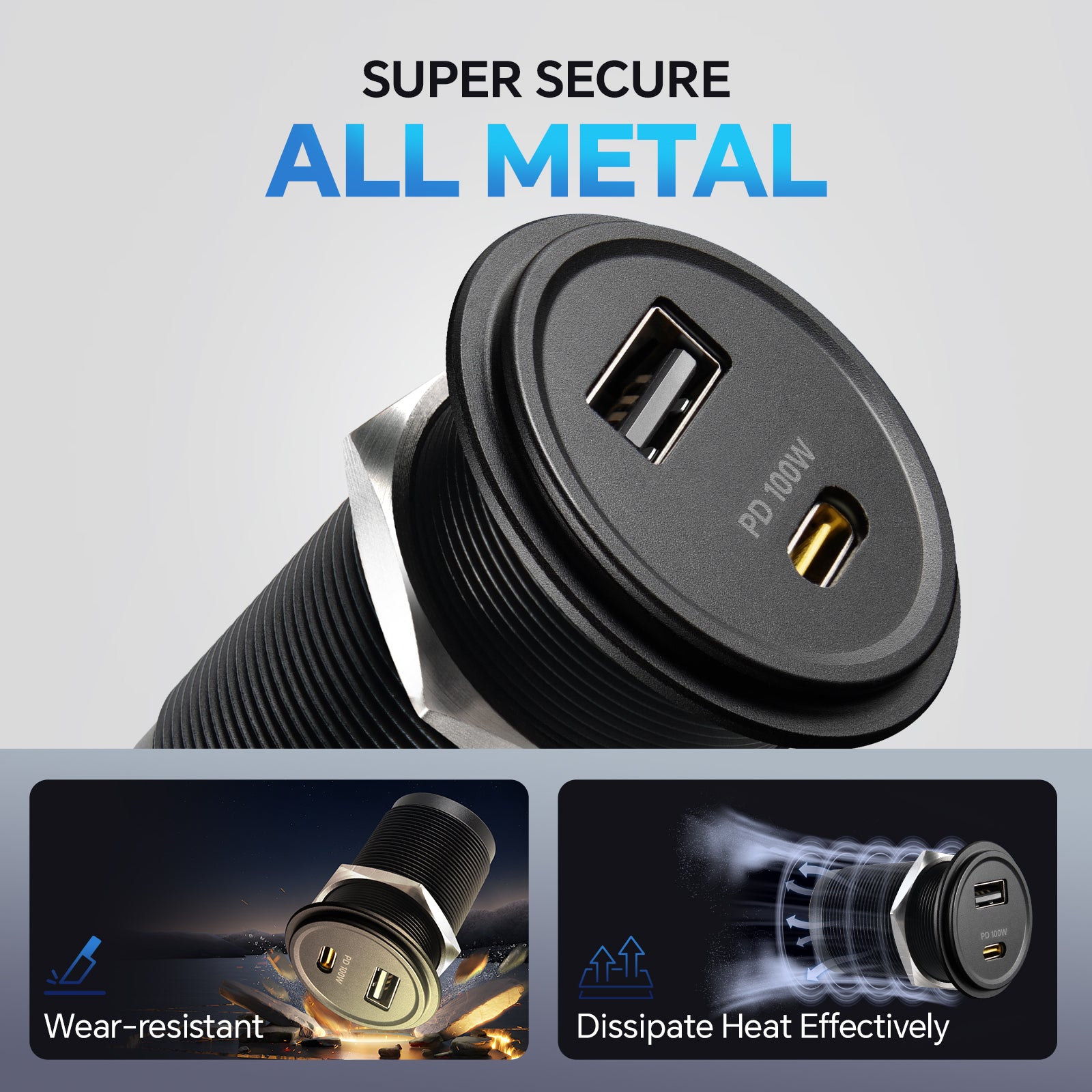

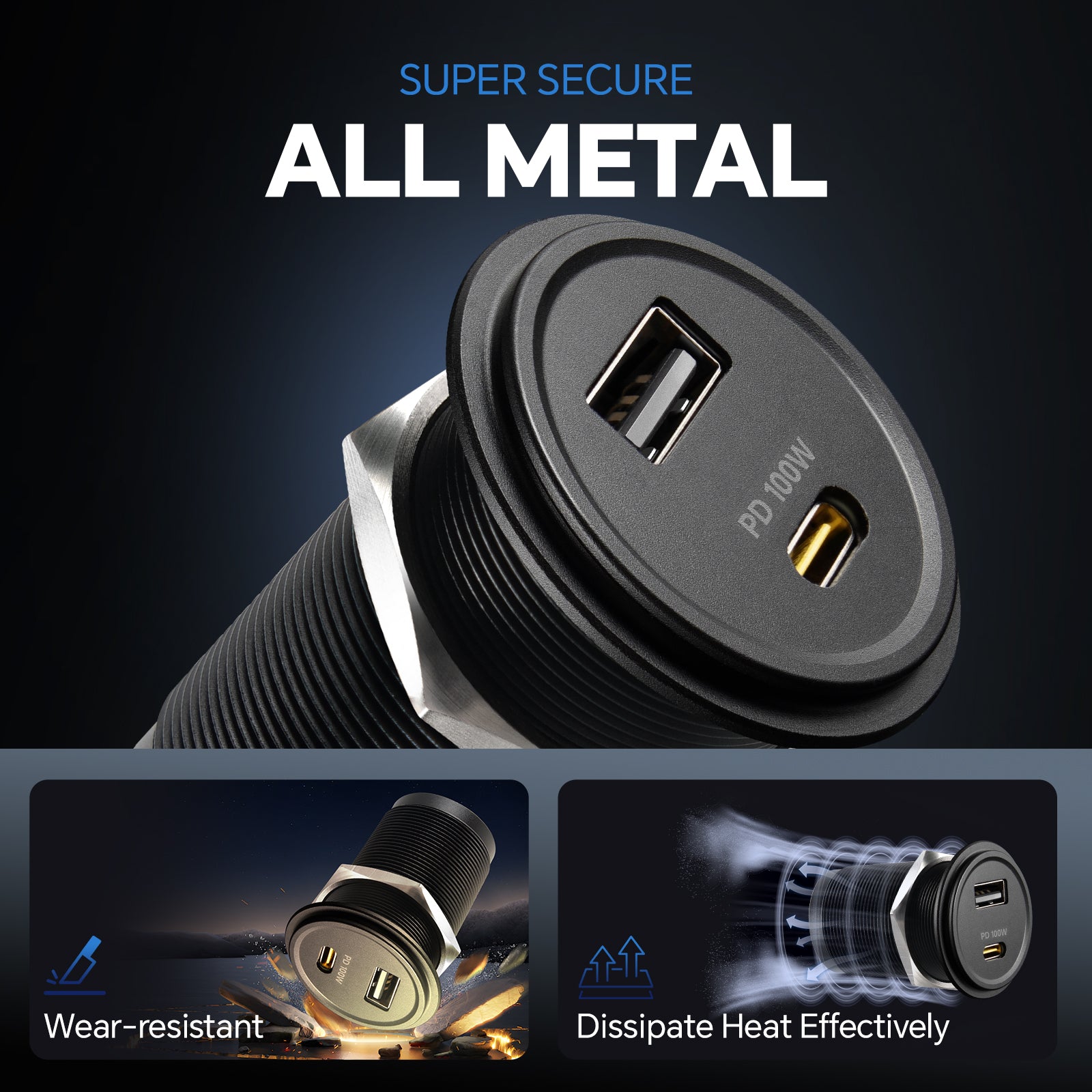

All-aluminum Made, Built to Last - Crafted from CNC aluminum with excellent heat transfer properties, ensures a high efficient, fast and stable charging performance. Aluminum construction means superior durability, outlasting traditional plastic chargers and adding a premium feel

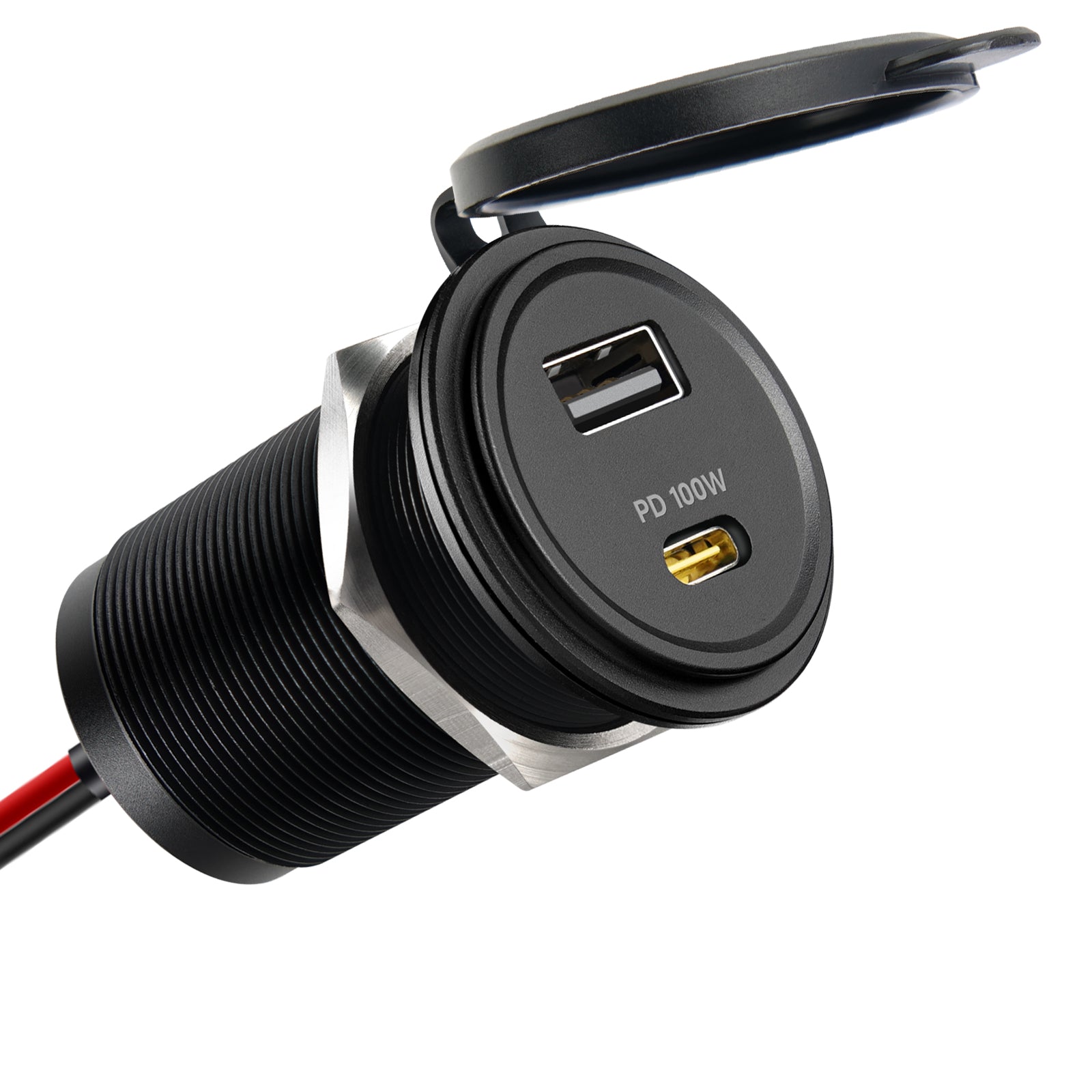

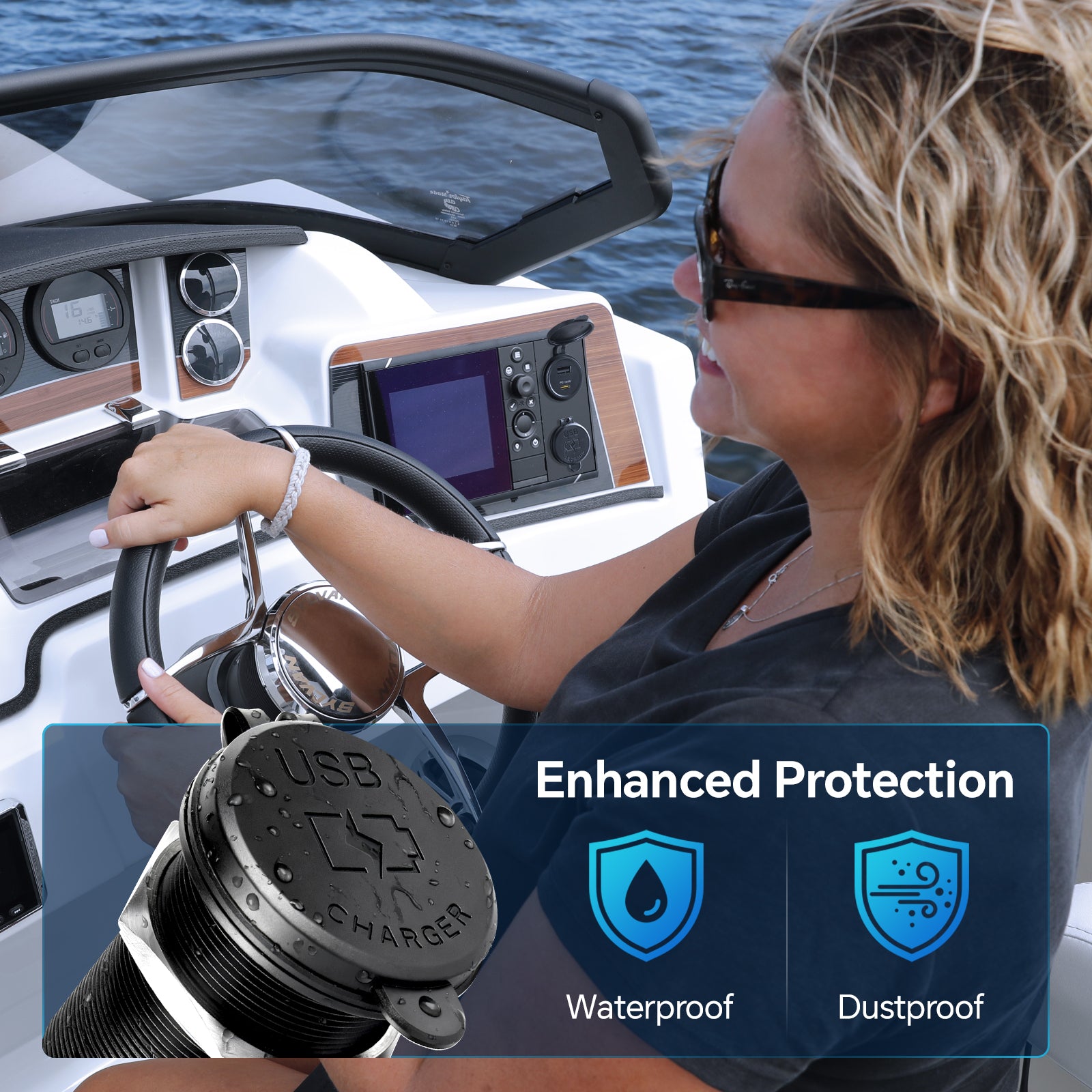

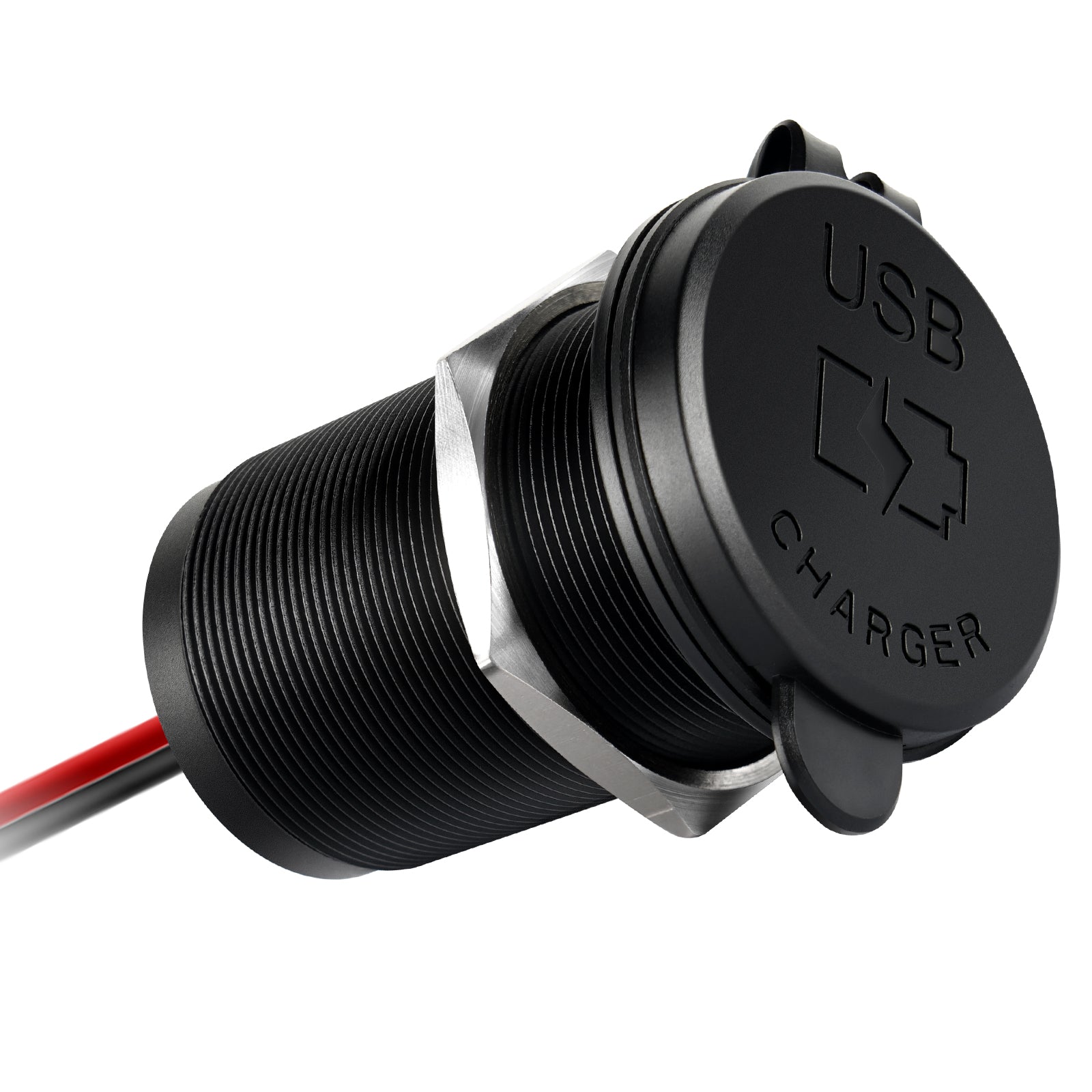

Recessed Mount, Sleek Clean Look: Drill a 30-32mm hole for recessed hidden mounting and then firmly secured by screw nut. The USB socket face plate flushes with the mounting surface, providing a clean and streamlined look after installation. A detachable waterproof cover creates a tight seal, protecting the ports from splashes, rain, and dust

Sleek, Low-Power Design: The ultra-compact black aluminum body features a low-profile design that blends seamlessly into RV dashboards and boat control panels, saving crucial space. With near-zero standby power consumption, it won't drain your battery during long trips or while moored. The intentionally backlight-free design ensures no distracting LED glare at night, maintaining a safe environment for driving and operation

Smart Safety Protection: An advanced smart chip provides comprehensive protection for your devices against unstable power. This multi-layer defense system guards against over-voltage, over-current, overheating, and short-circuits. It also automatically cuts off power once your devices are fully charged, ensuring safe and reliable charging

Versatile Applications for 12V 24V Vehicles - Designed to support both 12V and 24V systems, this USB charger outlet is perfect for a wide range of vehicles and applications, from motorhome camper van and caravan to boat marine truck golf cart cars or any 12-24V circuit represent

PARAMETERS:
Working Voltage:Input DC12V-24V

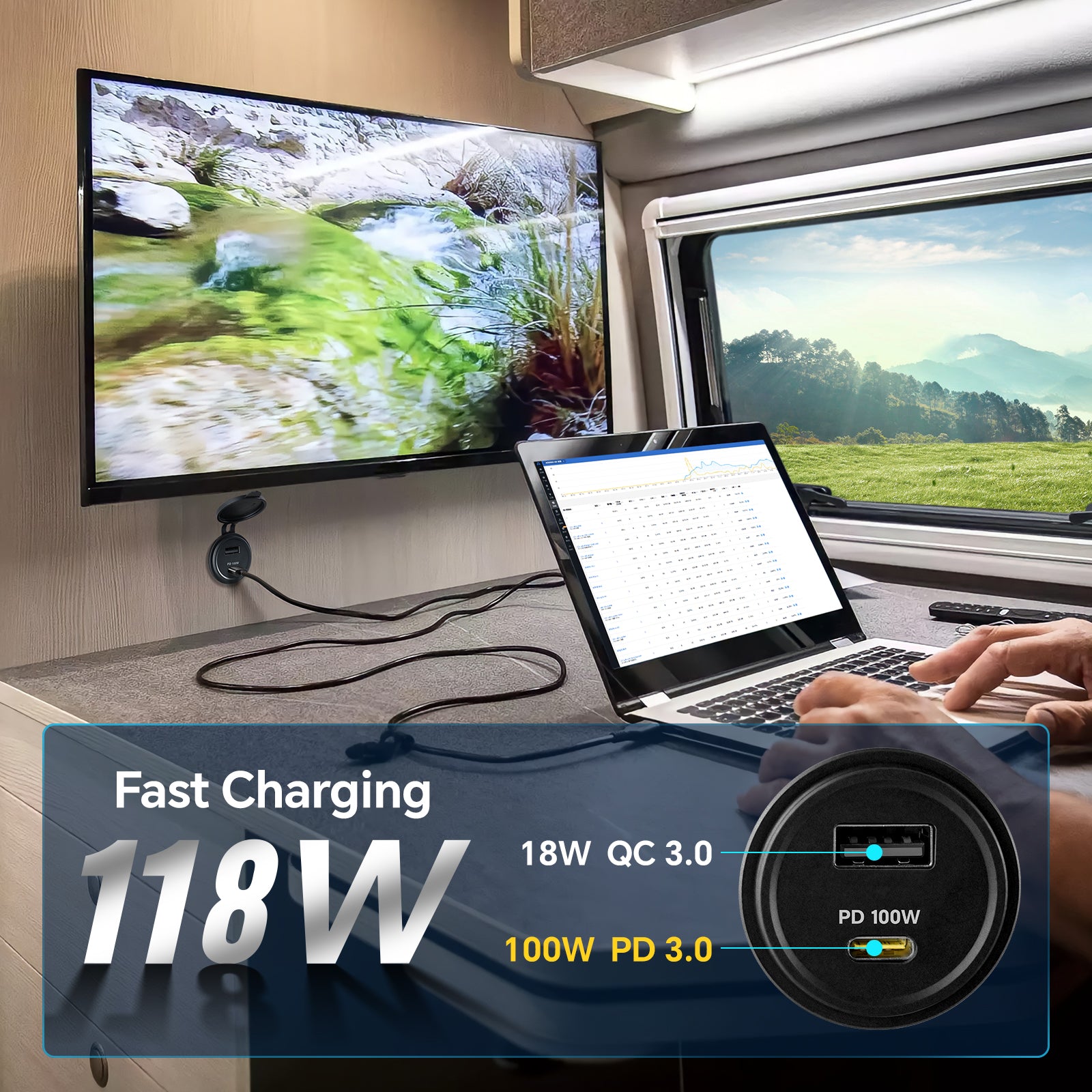

Dual Port: USB A 18W+ USB C 100W, PD3.0 + QC3.0
USB-C Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A
USB-A Output: 5V/3A, 9V/2A, 12V/1.5A
Power: 118W Total
Material: CNC milled aluminum
Recessed Mount: Drill hole 30-32mm
Fixed System: Secured by Screw nut

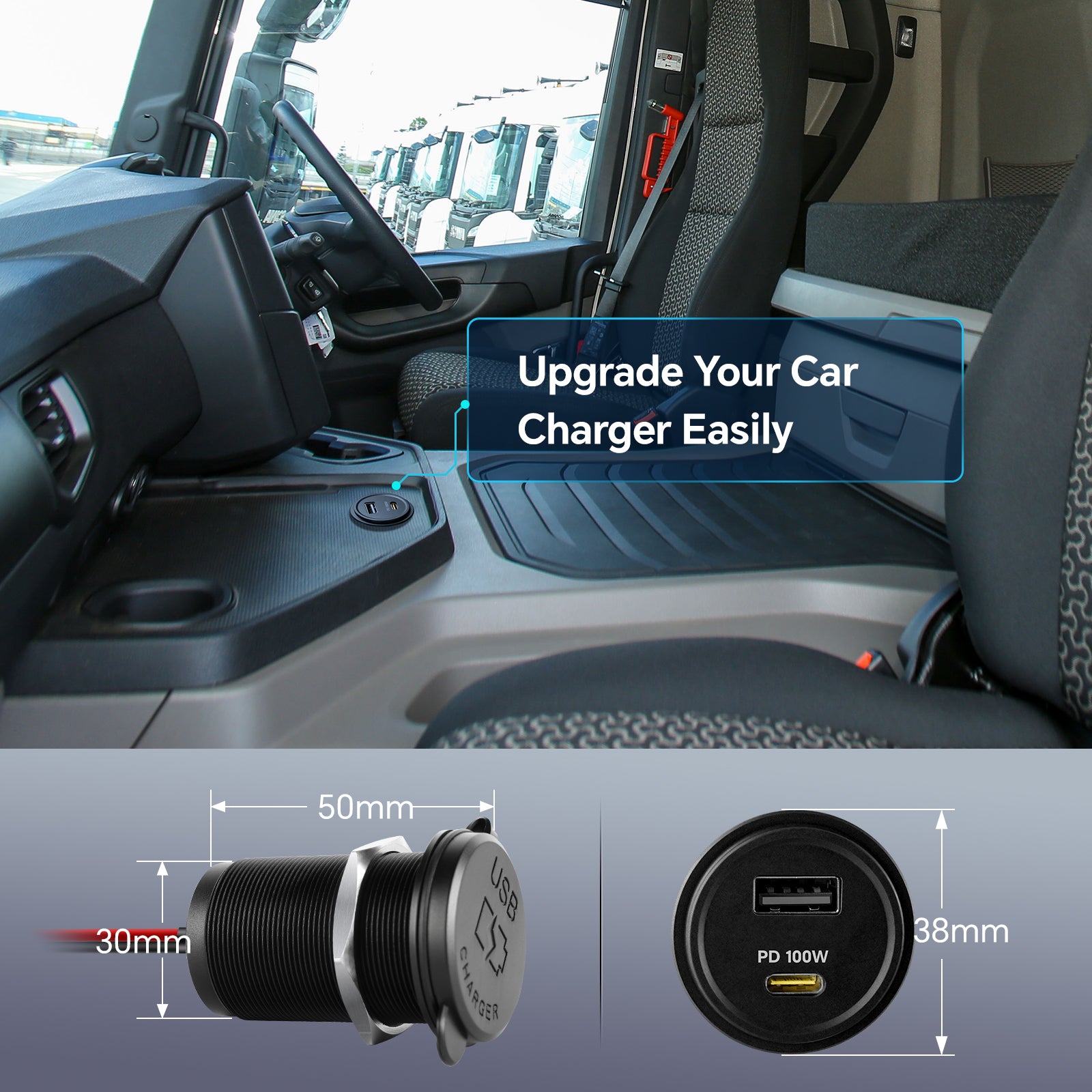

Dimension: 50mm*30mm*37mm


For optimal performance of the USB charging port, please note the following:
1. Ensure the input power from the battery or power source to the USB socket is at least 118W (12V@10A or 24V@5A). Insufficient input power will affect charging output.
2. Charging power is significantly affected by the cable used. It is recommended to use E-Marker certified cables to ensure stable high-power charging.
3. Some devices may automatically reduce charging power when the battery level is high (>80%) to protect battery health.
4. If voltage fluctuations occur in the battery or vehicle power supply, the charger will automatically adjust output power to ensure safety.
5. When charging at high power for extended periods in high-temperature environments (e.g., during summer), the charger may reduce output power due to temperature protection mechanisms.
