Acegoo

12V Dimmer Switch High Side, Push Button Dimmer for RV Boat Lighting & Led Strip Light, 6A Full Aluminum with Red Ring Light

12V Dimmer Switch High Side, Push Button Dimmer for RV Boat Lighting & Led Strip Light, 6A Full Aluminum with Red Ring Light

Regular price $22.80 USD
Regular price Sale price $22.80 USD
Sale Sold out
Color

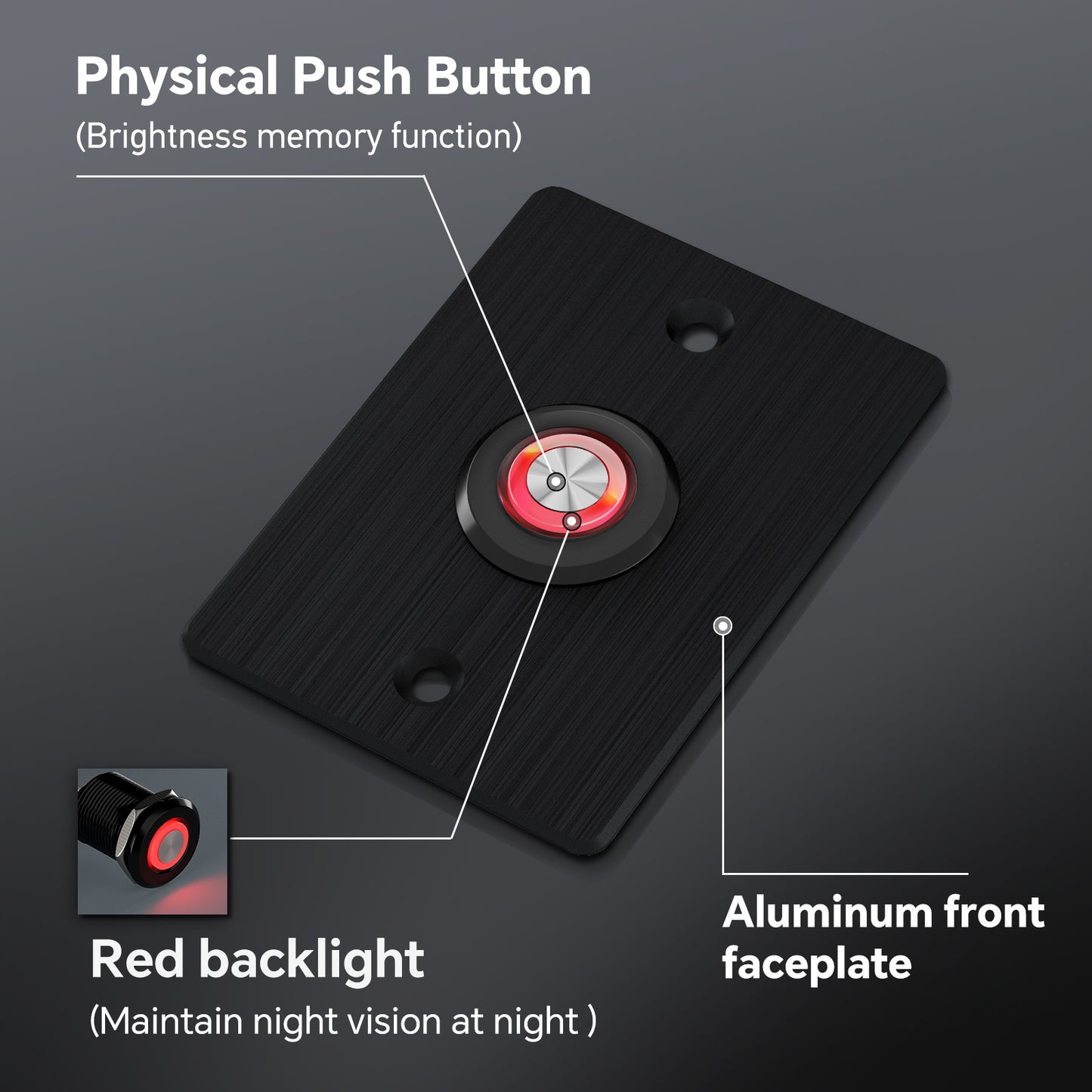

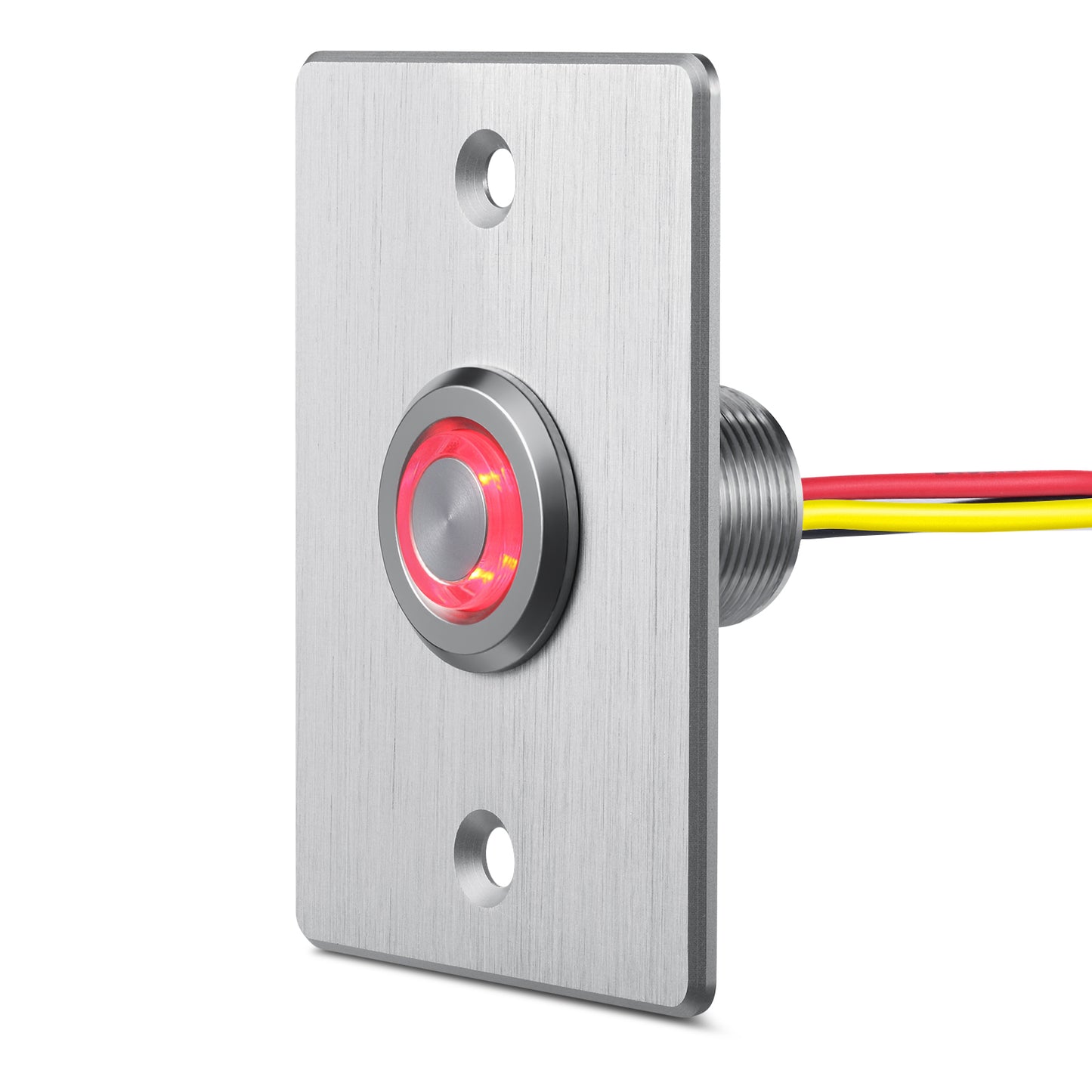

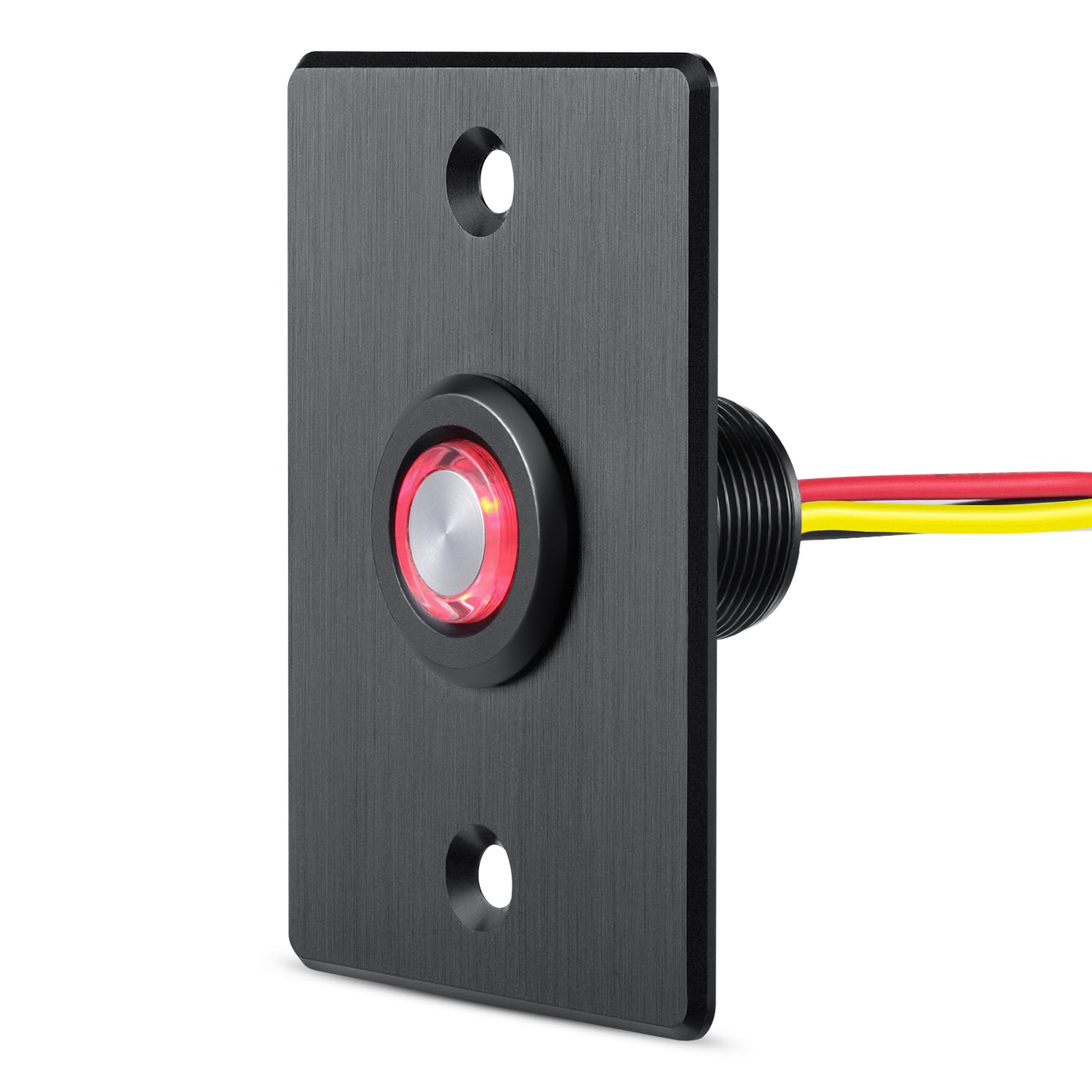

Durable Full Aluminum Material - The push button dimmer is manufactured from machined aluminum and additional aluminum face plate with texture finish

Reliable Physical Push Button - This is not capacitive touch switch, but mechanical push button. It is intuitive to operate, no malfunction, very reliable and stable

Smooth Dimming & Brightness Memory - Features 5% - 100% stepless dimming range, light brightness will keep the same as last time setting when turn on next time

Red Backlight On/Off Switchable - The red ring light preserves night vision in the night. You can freely switch the red backlight on or off according to personal preference

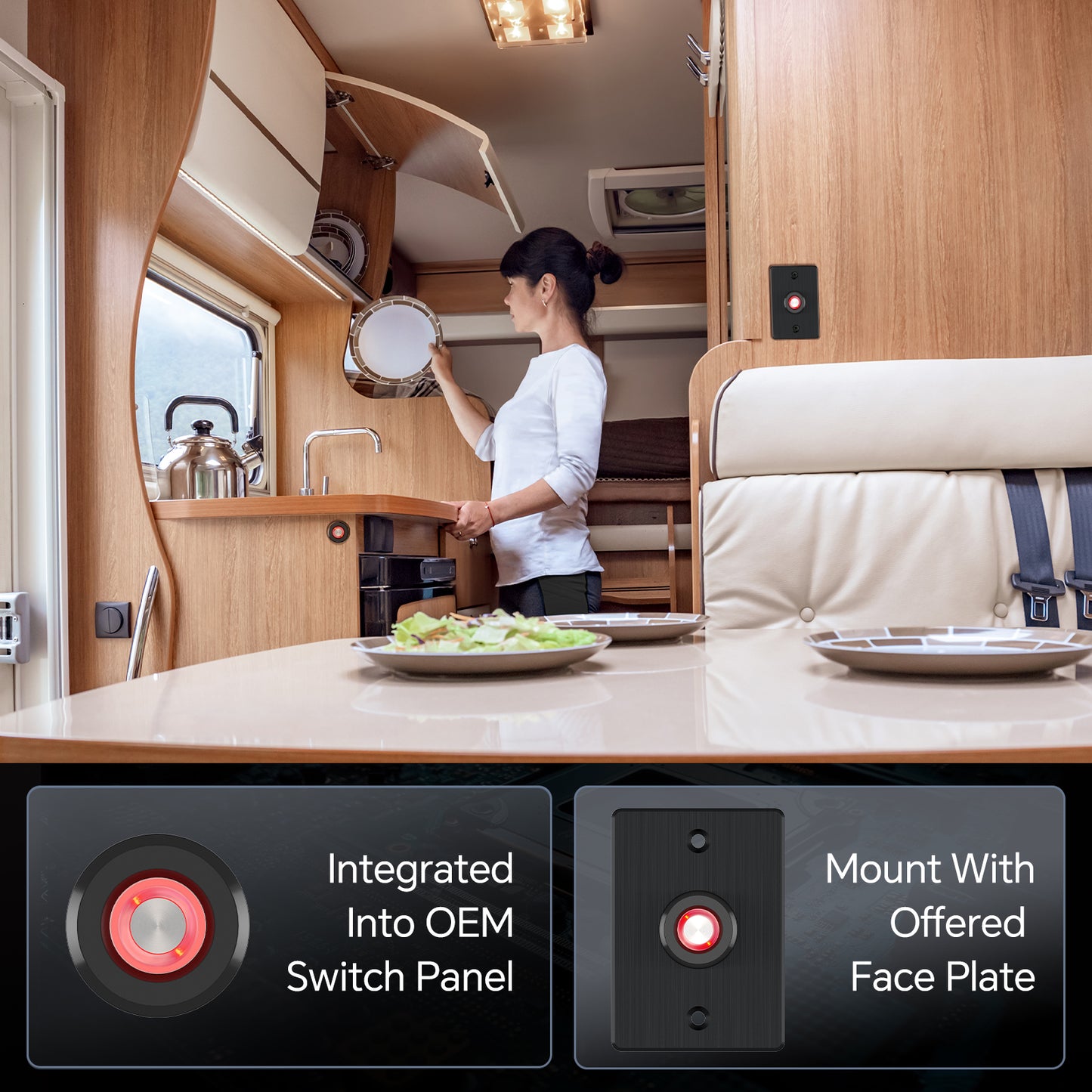

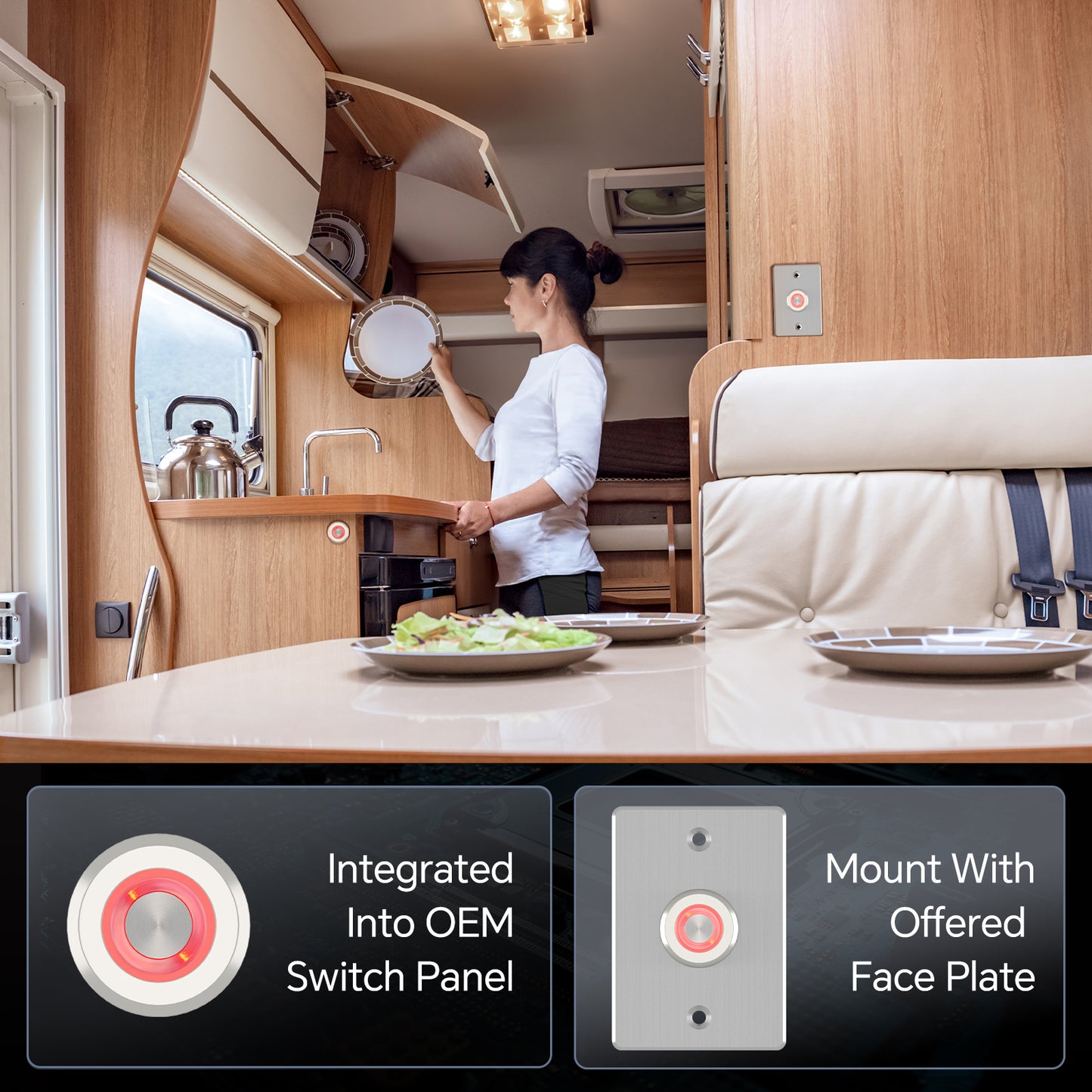

Flush Mounting, Clean Look - Drill a 19mm hole, dimmer was recessed into mounting surface and secured sturdy by screw nut in back, clean and modern looking

Description:
Widely used in RV, camper trailer, boat, truck, caravan, etc. interior lighting or anywhere 12 volt DC power is present.
Specification:
Enclosure Material: Full aluminum
Front Plate: Full aluminum
Operation Voltage: DC12V or DC24V
Output Current: Max 6 Amps@12V, 3A@24V
Dimming Type: Pulse Width Modulation (PWM)
Memory Function: Saves the last brightness setting
Red Backlight: On off switchable
Finish Color: Black / Silver

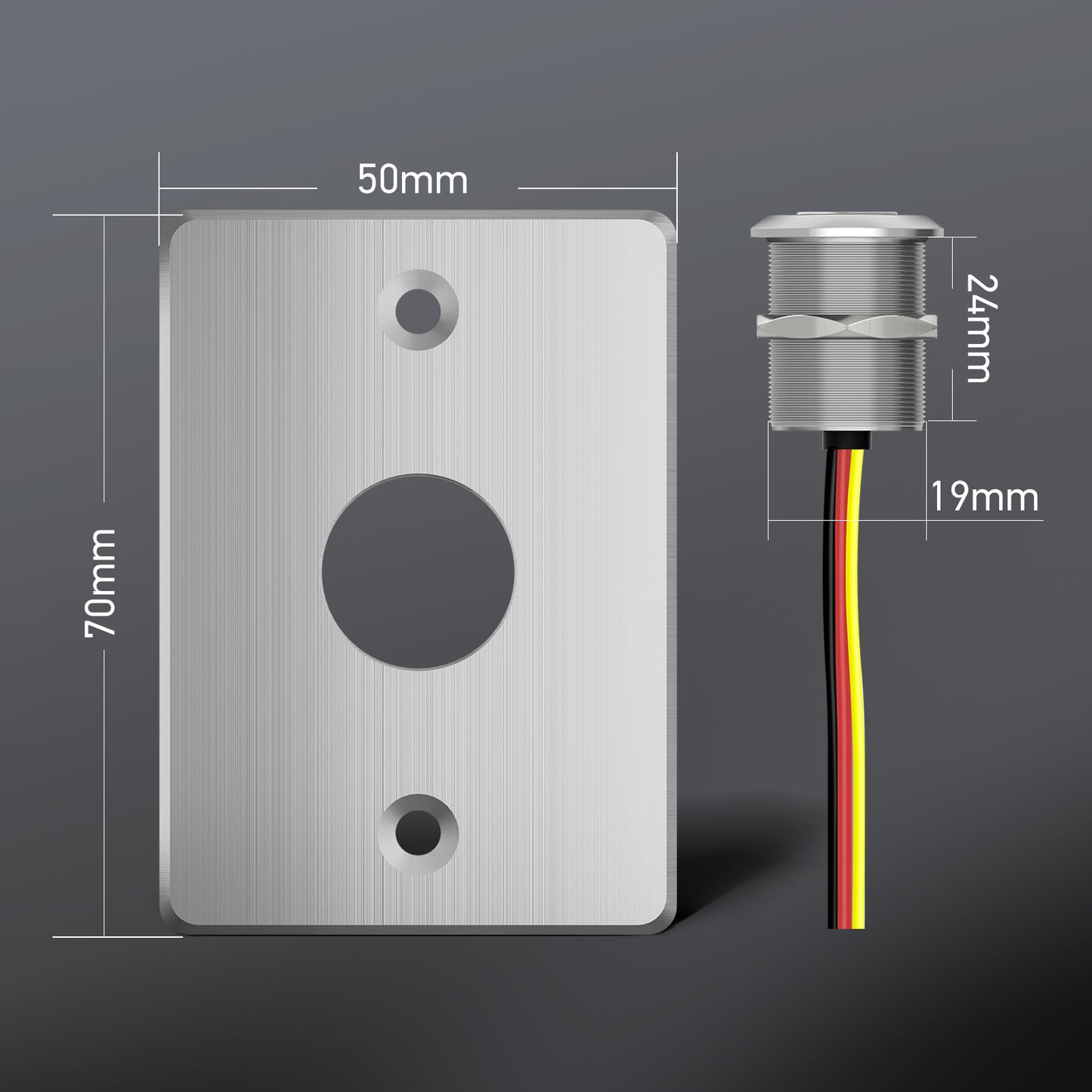

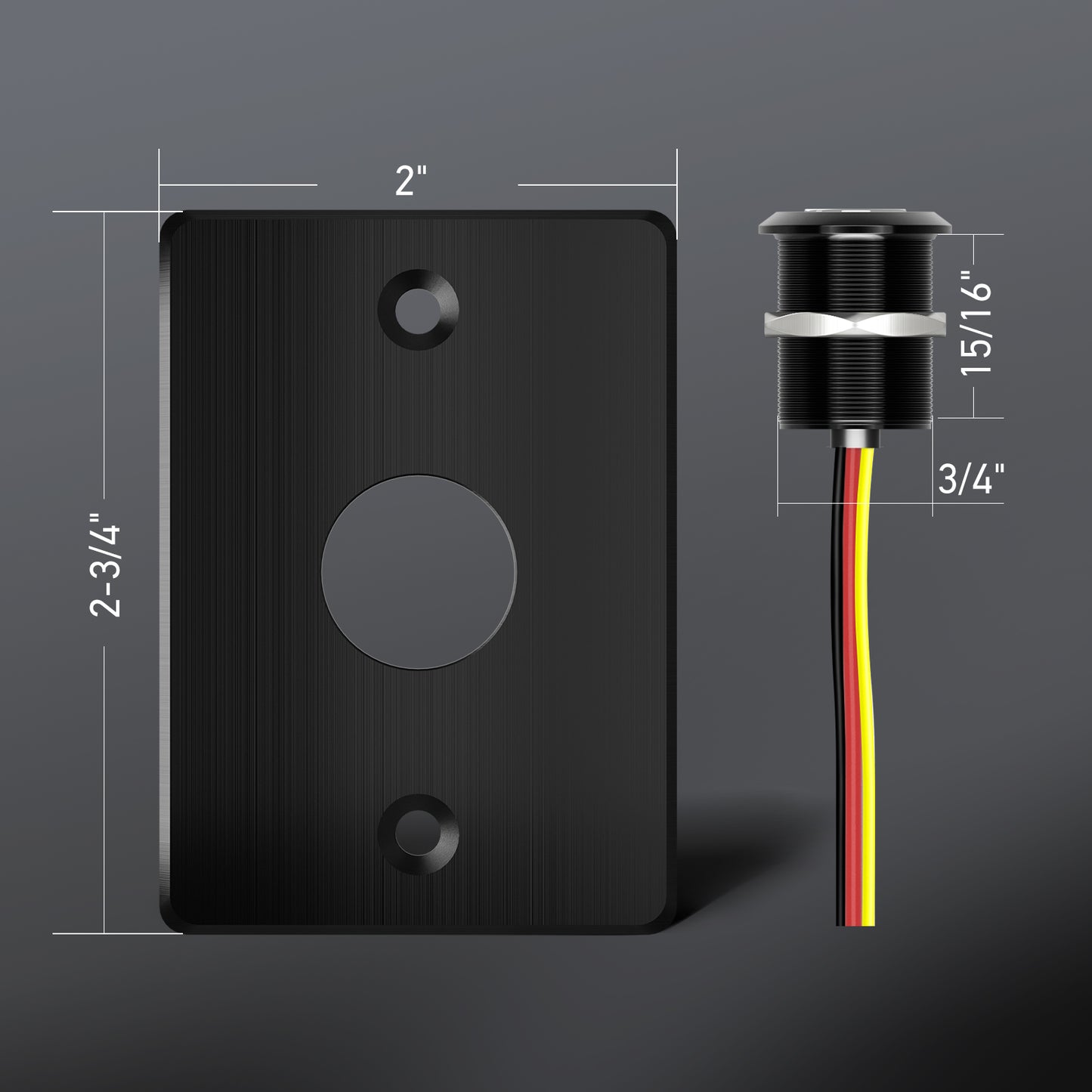

Dimmer Size: 7/8” x 1” (22mm x 25mm)
Front Plate Size: 2-3/4” x 2” (70mm x 50mm)
Installation Depth: 1” (25mm)
Drill Hole Diameter: 19mm
IP rating: IP 64
Application: Indoor use
Easy to Use:
1. Short press to turn on light.
2. Press and hold switch to adjust brightness smoothly.
3. Short press again to turn off light.
Red Ring Light
When the light that the dimmer controlled is off status, long press button to active red back light on, long press again to switch off red ring light .
NOTES:
This dimmer has brightness memory function, it will automatically keep the same brightness as last time when turn on light next time.
Some LED lights are not dimmable. Prior to installation, please make sure the LED light is dimmable, otherwise dimmer is not applicable.







SKU:ACE-12DS-6A-HSR-B
