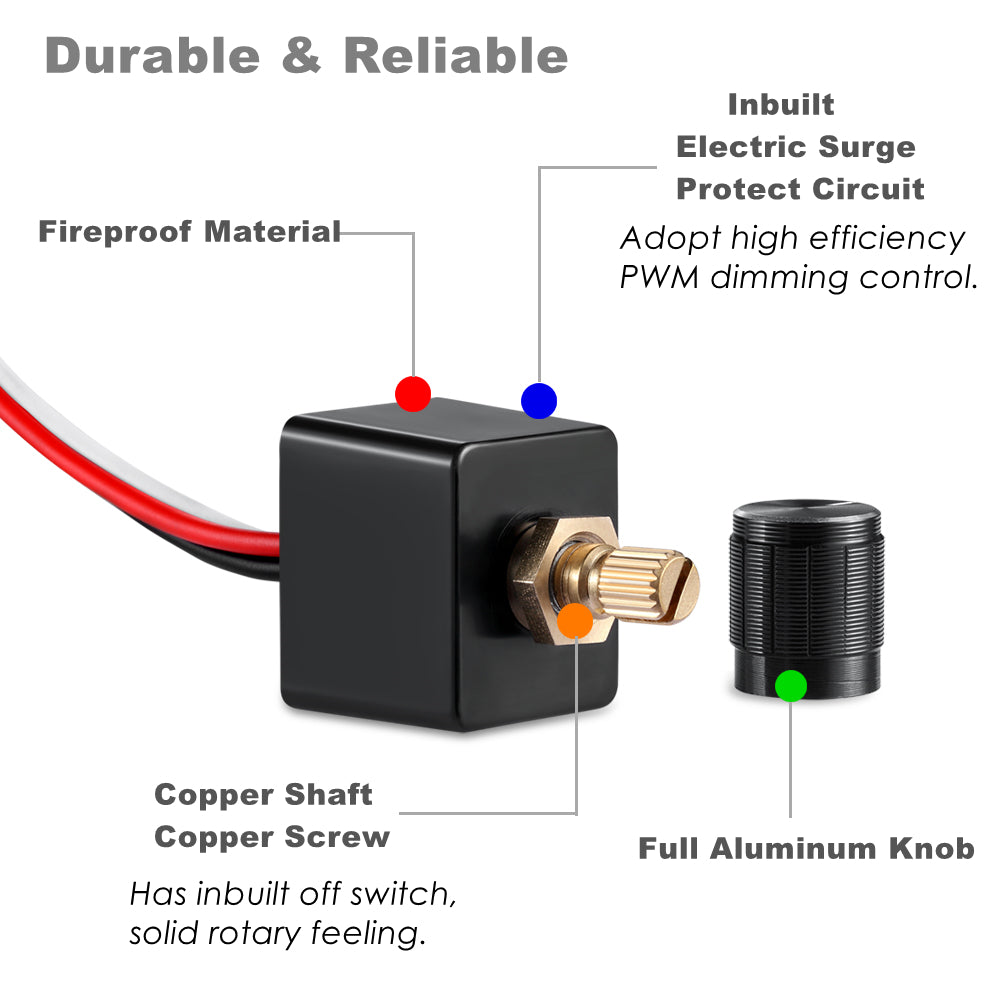

PWM Dimmer - adopt most power efficient high side PWM dimming method, no buzz flicker-free and save battery drain. Dims up to 48 watts (4 amps) under 12v condition. Works with Dimmable LED Light Fixture, Halogen, Incandescent, Strip Lights
On Off Dimming Control - it provides a smooth and linear flicker-free dimming experience, from full bright to the lowest dim setting, finally a "click" sound of turning off
Easy Installation - Small size dimmer easy integrated into custom control panel or install it on the places you want with the front panel (included in the package)
Perfect for Lighting Retrofit Projects - quick add a dimmer switch to the lights or upgrade an existing on/off light fixtures into dimmable ones and reducing power drain on batteries
Commonly used for lights in RVs, camper trailers, boats, cars, marine, trucks, vans or any dimmable DC 12V LED lights, strip lights, awning lights, etc.
Specifications:
Switch Type: Rotary dimming control
Rated Current: 4 Amps
Working Voltage: DC 12-24V
Control Type: High side PWM
Works with: LED lights, incandescent, halogen
Cutout: 23mm x 18mm x 18mm (Depth)
Cutout: 15/16" x 13/16" x 3/4" (Depth)
Dimension: 23mm (W) x 18mm(L) x 35mm(H)
Dimension: 15/16" (W) x 13/16”(L) x 1-1/2”(H)
Front Panel Size: 70mm x 50mm x 3mm
Front Panel Size: 2” x 2-3/4” x 1/8”
