Acegoo

RV 3” Recessed Puck Light Kit, 12V Bi-color LED Downlight Full Aluminum for Boat Camper Van Trailer Motorhome, 3W CRI90+ Dual Color (12V Dimmer included)

RV 3” Recessed Puck Light Kit, 12V Bi-color LED Downlight Full Aluminum for Boat Camper Van Trailer Motorhome, 3W CRI90+ Dual Color (12V Dimmer included)

Regular price $34.90 USD
Regular price $48.00 USD Sale price $34.90 USD
Sale Sold out
Color temperature

2 Lighting Modes - Dimmable white light & red nightlight. Works with Camperxlite 12V dual-mode dimmer to create 5% -100% dimmable white light and red night light dual lighting mode, dimmer included
Reliable Physical Push Button Dimmer - This push button light dimmer is manufactured from high performance full aluminum material and water-proof IP64 rated. This is not capacitive touch switch, but mechanical push button
CRI 90+ Natural True Color - This panel light inbuilt high color rendering (CRI90+) optimal arranged LEDs. It gives an even and natural pleasant light image, comfortable on your eyes

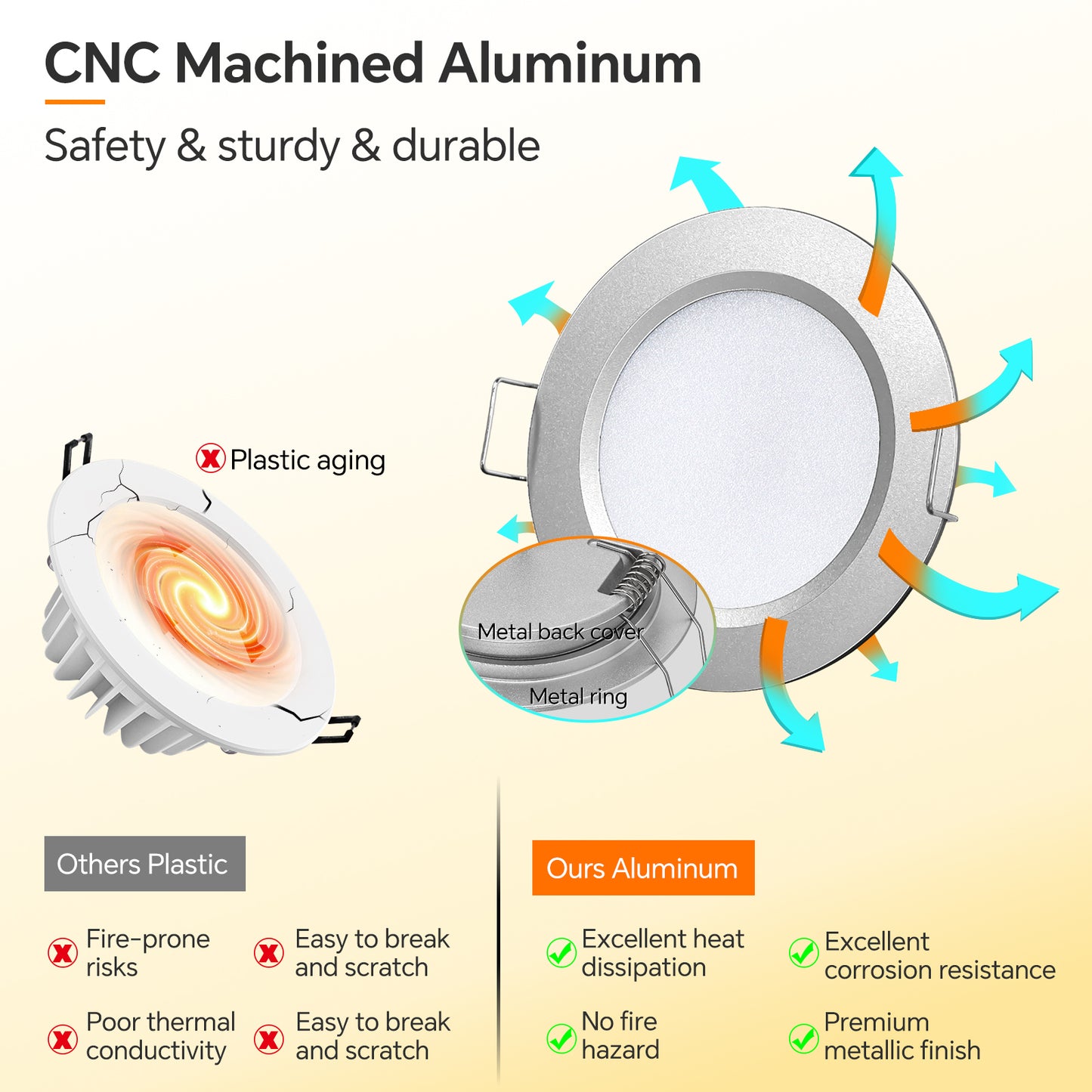

Full Aluminum Manufactured - The light fixture is manufactured from machined aluminum with excellent heat dissipation, and fitted with frosted PC lens for optimum light distribution
Shock-proof Flush Mounting - Installation is easy and fast, drill a 2-1/2" cutout, 2 stainless spring clamp firmly fix downlight to ceiling or under cabinet, very sturdy and vibration-proof
Clean Modern Looking - Slimline design, only 5/8" height ceiling dome light is perfect for low clearance ceiling application. The light fixture sits flush with ceiling, stylish clean look



This low profile puck light providing a sleek and modern aesthetic. It is perfect for RV boat camper van trailer interior spaces like ceiling, cabinet, bedroom, etc. Furthermore, its dual lighting mode (dimmable white and red night light ), gives all round lighting experience in the RV.
Puck Lights Specification:
Operation Voltage: DC 12 Volts
Dual Color LEDs: White/ Red
Color Temperature: 3000K / 5000K
Luminous Flux: 285 lumen
Power Consumption: 3 Watts
Color Rendering: CRI 90+
IP Rating: IP44 Protection
Mount Type: Recessed mount with springs

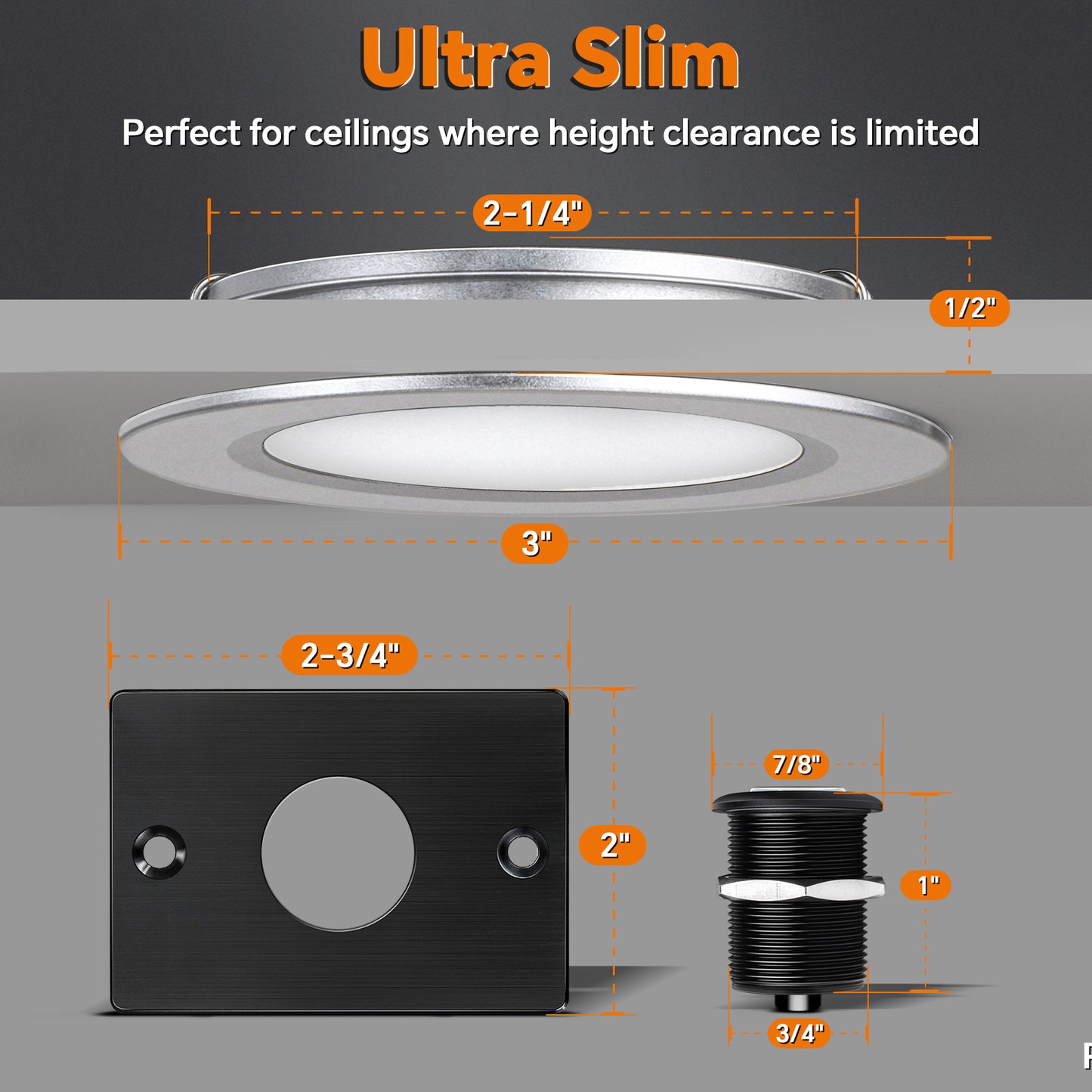

Dimensions: DIA 3", height 5/8"
Mounting cutout: 2-1/2”
Material: Aluminum, PC Lens, Stainless spring clamp
Finish Color: Satin silver, Matte black
Dimmer Specification:
Enclosure Material: Full aluminum
Front Plate: Full aluminum
Operation Voltage: DC12V
Output Current: Max 6 Amps
Dimming Type: Pulse Width Modulation (PWM)
Memory Function: Saves the last brightness setting
Dimmer Size: 7/8” x 1” (22mm x 25mm)
Front Plate Size: 2-3/4” x 2” (70mm x 50mm)
Installation Depth: 1” (25mm)
Drill Hole Diameter: 19mm
IP rating: IP 64

SKU:A12V-RM-ND3-SWK
